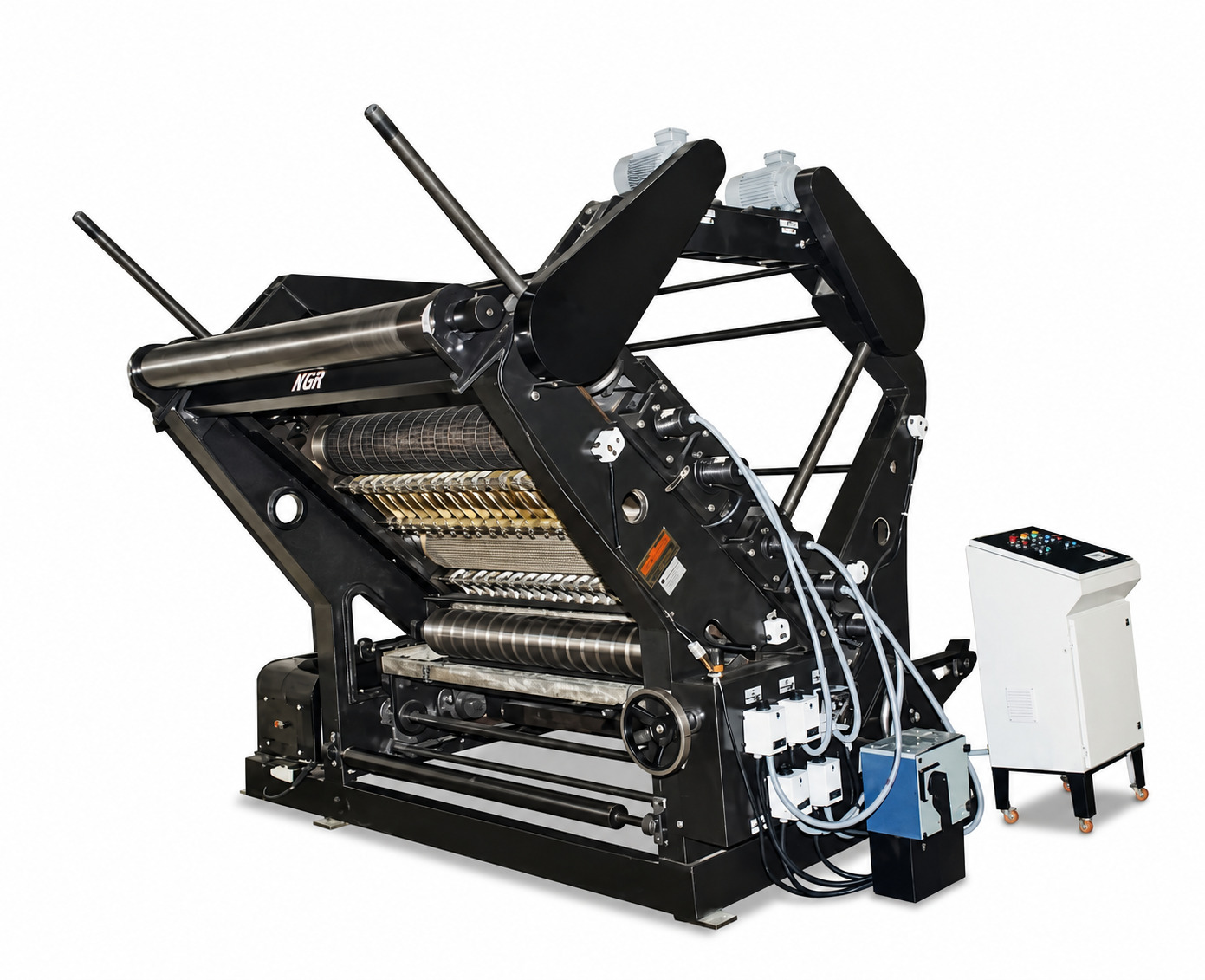

Double Profile High Speed Corrugation Machine with Fingers

  • Home
  • Corrugation Machines

Technical Data
Size 42” 52” 62” 72” 82”
Motor (H.P) 9.0 11.5 11.5 14.0 16.5
Stesam Req.Kg/Hr 200
 300 300 400 400
Weight App.(MT.) 5.0 5.5 6.0 6.5 7.5
Floor Space 7’x16’ 8.5'x16' 9.5'x16' 10'x17' 11'x18'

Description

Double Profile Single Face Corrugation Machine is supplied with two sets of any two types of Flute Roll. The Flute Rolls are bearing mounted to give high speed. This machine saves ample space in factory. We also provide high temperature greese which does'nt melt at high temperature while rollers are hot. It can also be run on steam or thermic Fluid. The Flute Rolls of this machine can be inter changed with motorised System and in Super Deluxe Model they can be interchanged with Hydraulic System.
