High Speed Single Face Corrugation Machine Fingerless Chinese Model

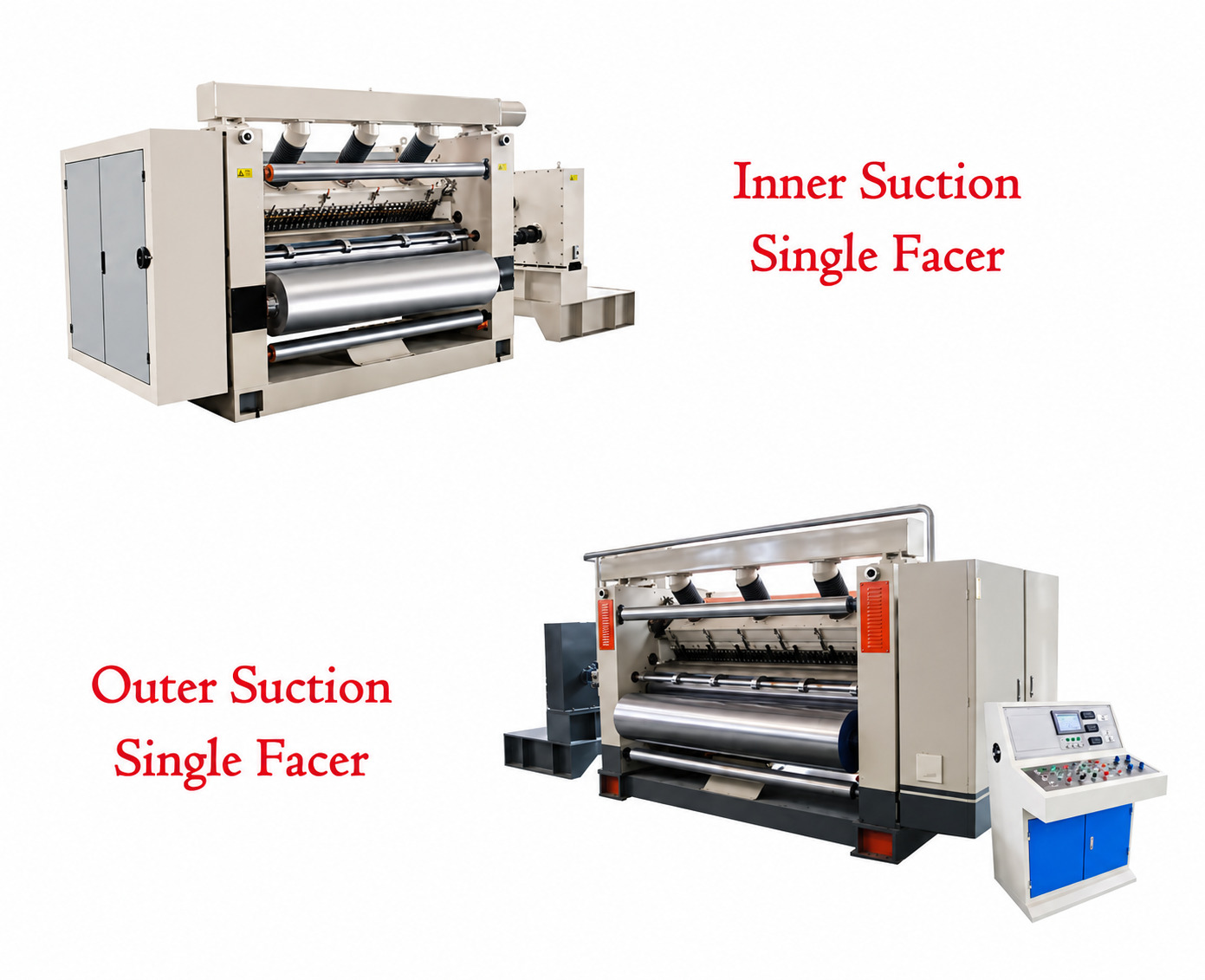

Inner Suction Single Facer

1. Adjust glue thickness electrically and display digitally.
2. Automatic, interval, circular and high grease provide reasonable lubrication.
3. Infrared detector assures auto paper-breaking protection, When paper is broken, the press roll and the glue trough will withdraw.
4. Thickness of glue is controlled by the clearance between glue roller and doctor roller, by electromotion or automatic. a Electromotion: Press the button that controls to adjust the clearance, to ensure paste enough glue. b.Automatic controlling: The encoder and PLC auto-controls according the change of speed. And with inter-face display, to ensure machine work in high or slow speed with good quality production.
5. High Rigidity one basement structure, drive with corrugating in mutual; independent drive box, universal joints help to increase stability. Might be communicate with PLC and transducer, control accelerate or decelerate speed, save power, reserve Input or Output of computer management system. 6. Might be equipped sprayer, adjustable base paper humidity.

Outer Suction Single Facer

1. Outer Vacuum Structure.
2. Adjust glue thickness by electromotion and display digitally. Auto-cycle glue feeding system.
3.Lubrication by recycled oil or high temperature grease.
4. Adjust the feeding width of glue by electromotion.
5. The heat source is steam.
6. Might be equipped sprayer, adjustable base paper humidity.
