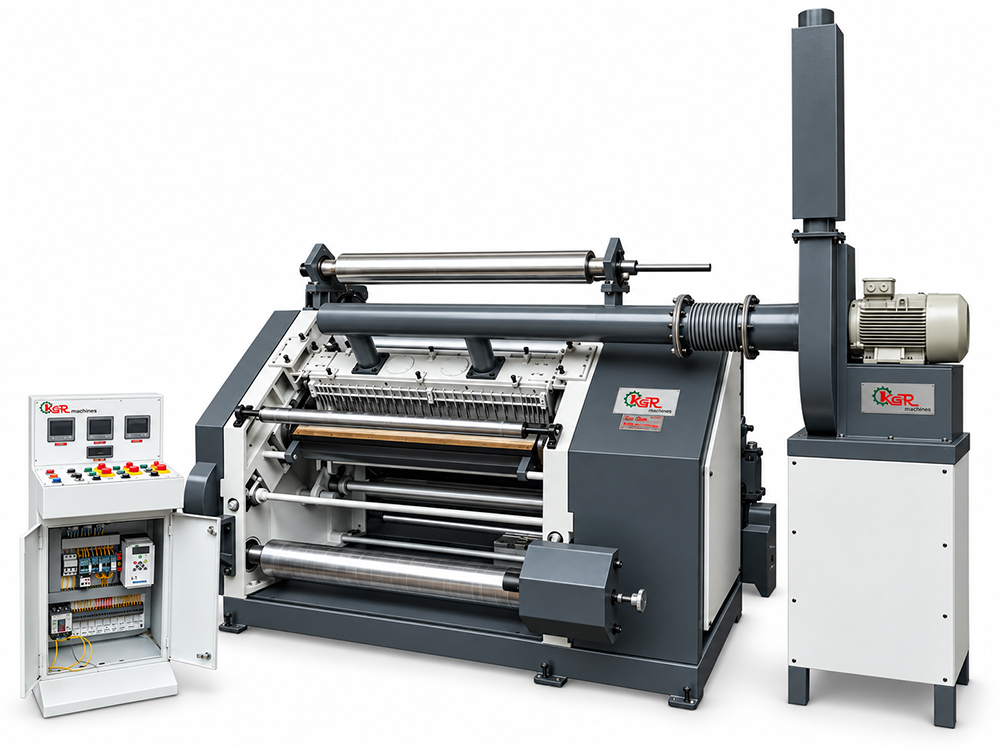

High Speed Single Face Paper Corrugating Machine Oblique Type Fingerless

Technical Data


Size	42”	46”	52”	62”
Blower H.P.	7.5	10	15	15
Power (H.P)	7 H.P	7.5 H.P	7.5 H.P	10 H.P
Speed Max/Min	20-30 Mtrs	20-30 Mtrs	20-30 Mtrs	20-30 Mtrs
Heating Load	36 K.W.	39 K.W.	39 K.W.	42 K.W.

Description

Single Facer is designed for producing single- Facer Corrugated Paper, the medium process into wave - Paper, and glue on the top of flutes, stick with liner becomes into Single Facer Corrugated Paper.

Among the many innovations on the single facer rolls are mounted on roller bearings for high speed production and lubrication system based on high-temperture fluorinated grease which solves a long-standing industry problem with recirculating oil lubrication systems. With the elimination of lubricating oil system, the wastage of oil and leakage on the floor is prevented. High-speed production and the making of quality board across a wide range of paper grades demand precise temperature & moisture control. The integral segments are provided for thermic fluid or steam heating system at cost. Blower type finger less machine. Fingerless system means adopter, hence full gum on flooded paper at it increase quality of board. Out put depending on paper and heat.
